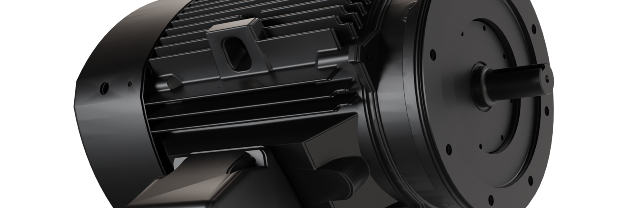

MOTORS
Fairbanks Morse Defense and Ward Leonard MIL-Spec motors are designed to meet MIL-M-17059 and MIL-DTL-17060 specifications and are manufactured to endure exposure to combat, rigorous shock, and saltwater for decades of use. Constructed with nodular cast iron, these rugged motors feature a vacuum pressure impregnation (VPI) epoxy-sealed insulation system, MIL-STD-2037, that delivers superior electrical insulation and water resistance.
ENGINEERED FOR EXCELLENCE
Ward Leonard motors also meet Grade-A shock, MIL-DTL-901, and vibration performance standards, MIL-STD-167, that are frequently required in Naval motor applications. Our motors are NAVSEA-approved in painting and welding, and meet the NAVSEA-spec for corrosion resistance. Our motors are designed to have service lives of 30 years and have been proven with performance in the U.S. Navy fleet to exceed this standard consistently.
discover our full range of products
Need details on our engines, systems, and solutions? Download or request a hardcopy of the FMD Catalog for a full overview, including specs and insights.
The Fairbanks Morse Defense commitment to technology innovation within maritime defenses is demonstrated through our newest AC Induction motor line for Surface Navy Vessels; the Ward Leonard Novo1 Motor line. This new motor line offers 12 frame sizes with a wide variety of configurations allowing for a very customizable and economical motor. They are designed to withstand the most destructive of impacts, manufactured under ISO-9001 certification and meets the requirements of MIL-DTL-17060.
Key Features
- Modular design allows for customization making it the only motor you need
- Commonality of parts
- Variety of mounting configurations, speeds and enclosures to meet shipboard requirements
- Built to latest Navy mil-spec standards: MIL-DTL-17060 Revision G Amendment 1
- CBM+ ready
- VFD Compatible
Advantages
- High reliability
- Cost effective & economical
Specifications
Please download the complete Novo1 Motor Line Specifications (PDF).
Built to MIL-Spec requirements, Ward Leonard compressor motors are designed for decades of use in the toughest environments. Ward Leonard compressor motors provide duty-cycle performance to withstand the demanding requirements of Naval compressors while providing efficient power at constant speeds without fluctuation.
Key Performance Ratings
- 1/16 to 350 HP
- 2 – 16 Pole Speeds
- 440V/3/60Hz
- Open and Closed Motor Enclosures
- Service A and C Applications
- Grade A and B Shock & Vibration Capable
Key Features
- Class F Sealed Insulation System
- Vacuum Pressure Impregnation
- Nodular Iron Frame Construction
- Precision Bearings
- Low Structure Borne Vibration Performance
- Single and Multiple Stator Winding Designs
Specifications
- MIL-M-17060/MIL-DTL-17060, Alternating Current Motors
- MIL-M-17059, Fractional Horsepower Motors
- MIL-S-901, Shock Testing
- MIL-STD-167, Vibration Testing
- MIL-STD-740, Noise Testing
- MIL-STD-2037, Vacuum Pressure Impregnation
Ward Leonard’s Navy Noise Quiet Motors are designed to support the operational capabilities of naval forces worldwide. These advanced motors power critical pump and compressor applications on submarines across various classes, ensuring reliable performance in the most demanding environments.
With low-structure-borne noise performance, these motors are extensively used on submarines globally. Engineered to be shock- and vibration-proof, they are specifically designed to fit within the tight spaces of military submarines—an essential requirement—while minimizing the vessel’s signature and detectability.
Key Performance Ratings
- 1/16 to 350 HP
- 2 – 16 Pole Speeds
- 440V/3/60Hz
- Service A and C Applications
- Grade A and B Shock & Vibration Capable
Key Features
- Class F Sealed Insulation System
- Vacuum Pressure Impregnation
- Nodular Iron Frame Construction
- Precision Bearings
- Low Structure Borne Vibration Performance
- Single and Multiple Stator Winding Designs
Specifications
- MIL-M-17060/MIL-DTL-17060, Alternating Current Motors
- MIL-M-17059, Fractional Horsepower Motors
- MIL-S-901, Shock Testing
- MIL-STD-167, Vibration Testing
- MIL-STD-740, Noise Testing
- MIL-STD-2037, Vacuum Pressure Impregnation
Ward Leonard motors are built to accommodate the severe duty requirements of Navy pump applications in the hazardous environments encountered by combat vessels.
Ward Leonard pump motors are built to withstand harsh environments and provide reliable service in demanding Naval pump applications including brine, graywater, ground food waste, cooling, bilge, firefighting, and others.
Key Performance Ratings
- 1/16 to 350 HP
- 2 – 16 Pole Speeds
- 440V/3/60Hz
- Open and Closed Motor Enclosures
- Service A and C Applications
- Grade A and B Shock & Vibration Capable
Key Features
- Class F Sealed Insulation System
- Vacuum Pressure Impregnation
- Nodular Iron Frame Construction
- Precision Bearings
- Low Structure Borne Vibration Performance
- Single and Multiple Stator Winding Designs
Specifications
- MIL-M-17060/MIL-DTL-17060, Alternating Current Motors
- MIL-M-17059, Fractional Horsepower Motors
- MIL-S-901, Shock Testing
- MIL-STD-167, Vibration Testing
- MIL-STD-740, Noise Testing
- MIL-STD-2037, Vacuum Pressure Impregnation
Ward Leonard MIL-Spec servo motors offer wide-ranging designs to support all fan applications in the fractional to integral horsepower range.
Our servo motors are designed to support fan applications including aero foil, mixed-flow, Type-A, centrifugal, CPS, and others. Ward Leonard servo motors are built to last for decades of use in the harsh environments of life at sea.
Key Performance Ratings
- 1/16 to 350 HP
- 2 – 16 Pole Speeds
- 440V/3/60Hz
- Open and Closed Motor Enclosures
- Service A and C Applications
- Grade A and B Shock & Vibration Capable
Key Features
- Class F Sealed Insulation System
- Vacuum Pressure Impregnation
- Nodular Iron Frame Construction
- Precision Bearings
- Low Structure Borne Vibration Performance
- Single and Multiple Stator Winding Designs
Specifications
- MIL-M-17060/MIL-DTL-17060, Alternating Current Motors
- MIL-M-17059, Fractional Horsepower Motors
- MIL-S-901, Shock Testing
- MIL-STD-167, Vibration Testing
- MIL-STD-740, Noise Testing
- MIL-STD-2037, Vacuum Pressure Impregnation
Ward Leonard has a long history of providing MIL-Spec motors to drive winches on U.S. Navy aircraft carriers and other vessels deployed throughout the world.
Ward Leonard 440 Volt AC MIL-Spec induction motors feature high starting torque and multiple speeds to provide optimal power to drive gypsy, span wire, saddle winches, and capstans.
Key Performance Ratings
- 1/16 to 350 HP
- 2 – 16 Pole Speeds
- 440V/3/60Hz
- Open and Closed Motor Enclosures
- Service A and C Applications
- Grade A and B Shock & Vibration Capable
Key Features
- Class F Sealed Insulation System
- Vacuum Pressure Impregnation
- Nodular Iron Frame Construction
- Precision Bearings
- Low Structure Borne Vibration Performance
- Single and Multiple Stator Winding Designs
Specifications
- MIL-M-17060/MIL-DTL-17060, Alternating Current Motors
- MIL-M-17059, Fractional Horsepower Motors
- MIL-S-901, Shock Testing
- MIL-STD-167, Vibration Testing
- MIL-STD-740, Noise Testing
- MIL-STD-2037, Vacuum Pressure Impregnation

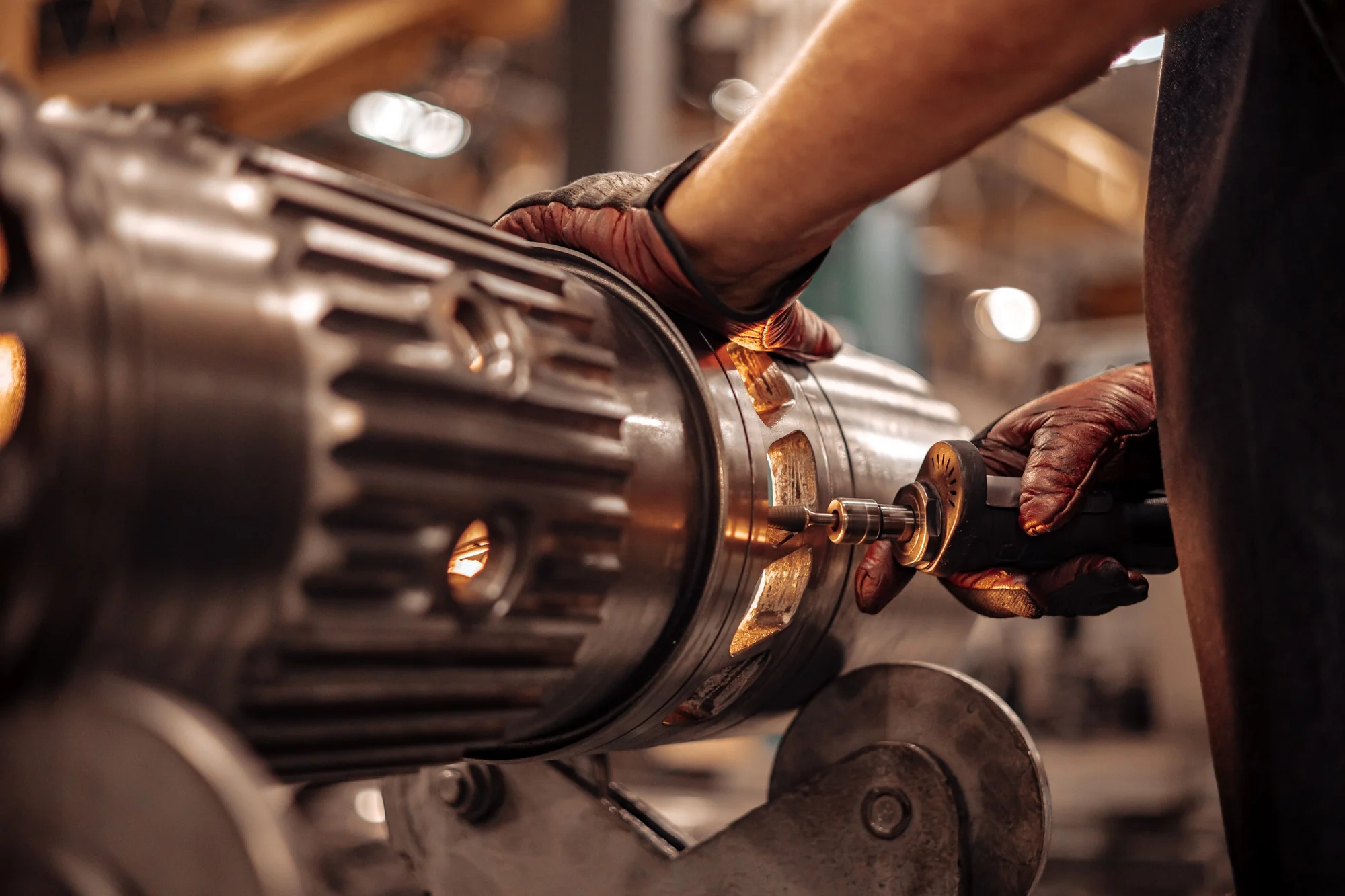

Parts & Service
Fairbanks Morse Defense offers an extensive portfolio of services to optimise performance, ensure reliability, and extend the life of your fleet – from the day its commissioned and for the many years that follow. Learn more about what our custom solutions can do for you.
Commercial Solutions
In addition to the defence industry, Fairbanks Morse Defense also works with the commercial industry. Our commercial customers can include municipal and nuclear power plants, hospitals, universities, and international stationary power applications.
