Power Range: 1,740 - 4,440 kWb

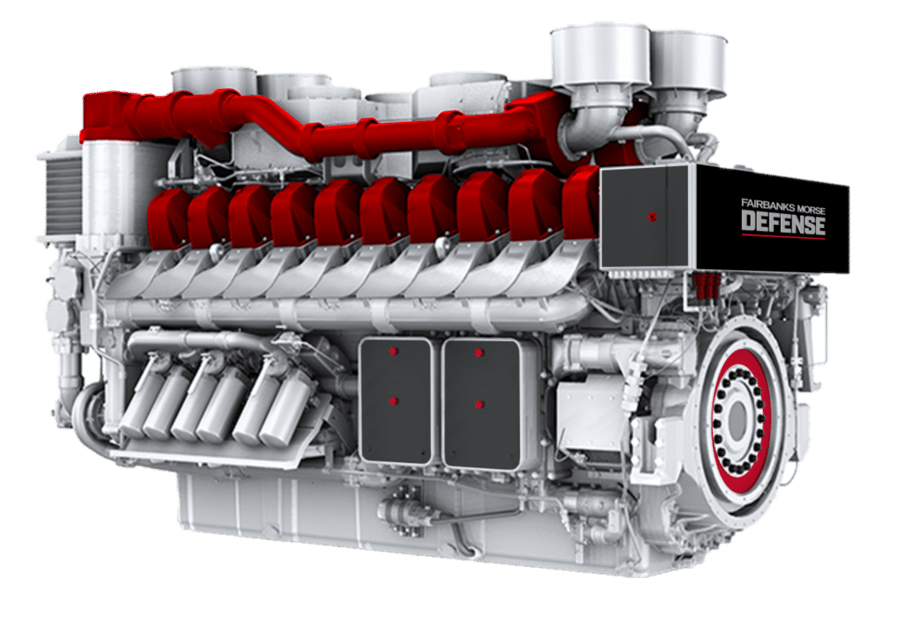

The new FM 175 D engine boasts a clear and compact design intended to deliver continuous, reliable performance. Maximum power output at lowest weight makes the FM 175 D the superior choice. Whether you’re patrolling in low-load mode or cruising full power, the easy handling and high availability of the 175 D allows you to focus entirely on your mission.
Key Advantages:
Applications and Installations:
Specifications
| Cylinder Configuration: | 12V, 16V, 20V |
| Cylinder Bore-mm (in): | 175 (6.89) |
| Piston Stroke-mm (in): | 215 (8.46) |
| Cycle: | 4 Stroke |
| Displacement/Cylinder- L (cu in): | 5.17 (315.49) |
| Mean Piston Speed-m/s (ft/min): | 12.9 (42.32) |
| Fuel Type: | DMA, DMZ, F-75, F-76 |
Power Ratings
| CYLINDERS: | Constant Speed Generator* (1,800rpm 60 Hz) |
Variable Frequency Generators* (1,080rpm - 1,800rpm) |
Propulsion Engine (1,800rpm - 2,000rpm) |
| 12V | 1,728 kWe - 2,189 kWe | 1,786 kWe - 2,189 kWe | 1,740 kWb - 2,580 kWb |
| 16V | 2,304 kWe - 2,842 kWe | 2,381 kWe - 2,842 kWe | 2,320 kWb - 3,200 kWb |
| 20V | 2,880 kWe - 3,648 kWe | 2,976 kWe - 3,648 kWe | 3,200 kWb - 4,400 kWb |
*Assuming a generator efficiency of 96%
Dimensions
| CYLINDERS: | Genset | Propulsion Engine | Weight Engine / Genset |
| Dimensions | L x W x H (mm) | L x W x H (mm) | Metric Ton |
| 12V | 5,000 x 1,170 x 2,670 | 2,900 x 1,661 x 2,295 | 9.0 / 15.8 |
| 16V | 6,000 x 1,800 x 2,850 | 3,420 x 1,661 x 2,316 | 11.1 / 23.0 |
| 20V | 6,500 x 1,800 x 2,900 | 3,940 x 1,800 x 2,900 | 13.3 / 27.0 |
Notes:
All ratings subject to factory-approved application.
Ratings are based on:
-- 90ºF (32.2ºC) ambient temp.
-- 28.25 in Hg (71.8 cm Hg) barometric pressure (min).
-- 1,500 ft. (457 m) altitude (max). Standby ratings available.
The kWe ratings are based on generators with nominal efficiencies of 96.2%.
All dimensions and rating data given is for base load generator set.
Fairbanks Morse Defense is a Everllence licensee.
