DUAL POINT DAVITS
FMD’s innovative and robust dual point davits are engineered to handle substantial workboats and daughter craft, with lifting capacities of up to 60 tons. These systems are equipped with advanced computer-assisted features, which support operators in performing safe launch and recovery operations, even in the most challenging sea conditions.
Our dual point davits leverage sophisticated technology to optimize control and precision, allowing operators to execute complex maneuvers with enhanced safety. This dual fall technology is a cornerstone of our systems, as it significantly boosts security and stability for both the boat and crew. By ensuring balanced load distribution and minimizing sway, this feature protects equipment and personnel during high stakes operations.

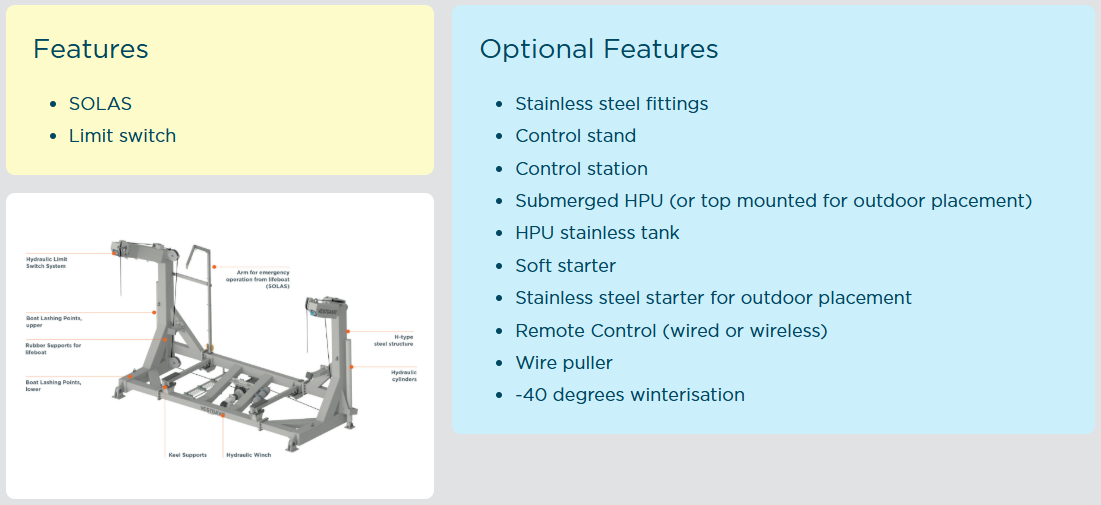

The H davit is a two-point lifting system designed for the launch and recovery of lifeboats and rescue boats.
This davit is widely used in commercial shipping, naval vessels, and offshore platforms, where lifeboats are essential for emergency evacuation and search-and-rescue operations. Its versatile and customizable design allows it to accommodate lifeboats of various sizes and configurations, while maintaining compliance with strict international safety and class certification standards. This adaptability makes the H davit a reliable and efficient choice for maritime operators seeking a robust, long-term solution for lifeboat handling. The H davit utilizes two lifting points with a balanced weight distribution, as this helps to evenly distribute the boat’s weight, preventing excessive tilting and ensuring a controlled launch which increases safety, smooth deployment and recovery. One of the outstanding features of the H davit is its ability to accommodate a wide range of lifeboat sizes and designs which can be configured to launch both standard lifeboats and fast rescue boats (FRBs). These davits can be manual, hydraulic, or electrically operated.
H Davit Specifications
| Approvals | DNV. Other class societies on request |
| Capacity | 5000-24000kg |
| Certificate | CE marking according to the Marine Equipment Directive |
| Optional Equipment | Dynamic shock absorber, self-tension winch system |
| Power | Hydraulic with stored power in accordance with SOLAS |
| Typical Users | Merchant Vessels, Passenger Ferries/Cruise Ships |
Product Models
| Model | H-5000 | H-9001 | H-13000 | H-20000 |
|---|---|---|---|---|
| Med Cert. | Yes | Yes | Yes | Yes |
| MWL | 5000 | 9000 | 13000 | 20000 |
| Total travel (outreach) | 3135 | 4205 | 4340 | 4406 |
| Inst. Height, Stored Pos (mm) | 3626 | 4806 | 4795 | 5265 |
| Estimated Std Weight (kg) | Issued on request | Issued on request | Issued on request | Issued on request |
| Hoist Speed (m/min) | 0-6/0-18* | 0-6/0-18* | 0-6/0-18* | 0-6/0-18* |
| Estimated Std Power Cons. (kW) | 8/24 | 19/54 | 24/78 | 36/98 |
| SOLAS | Yes | Yes | Yes | Yes |
* Hoist speed 0-6 m/min for lifeboats, 0-18 m/min for rescue boats

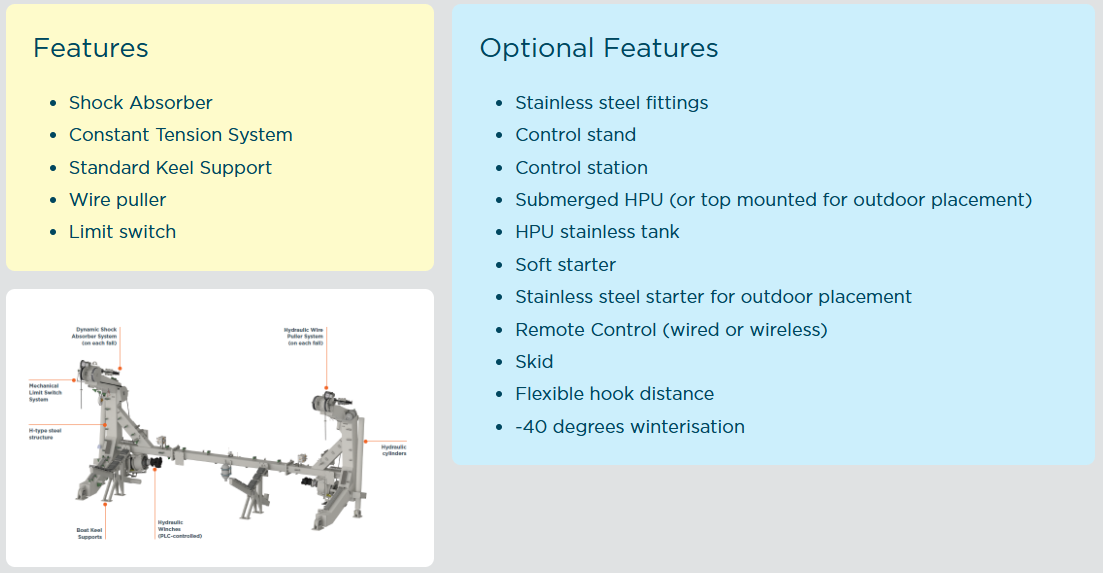

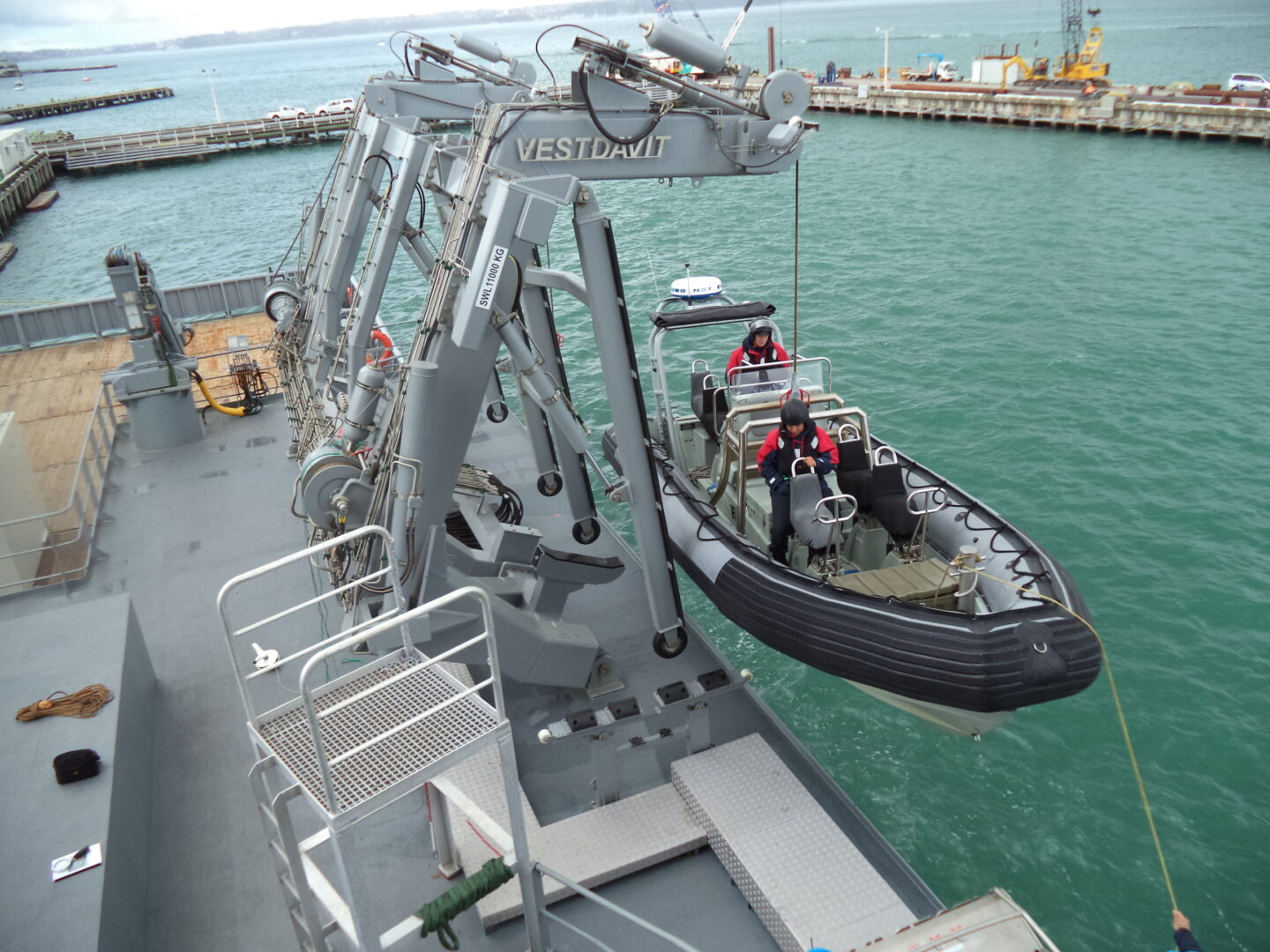

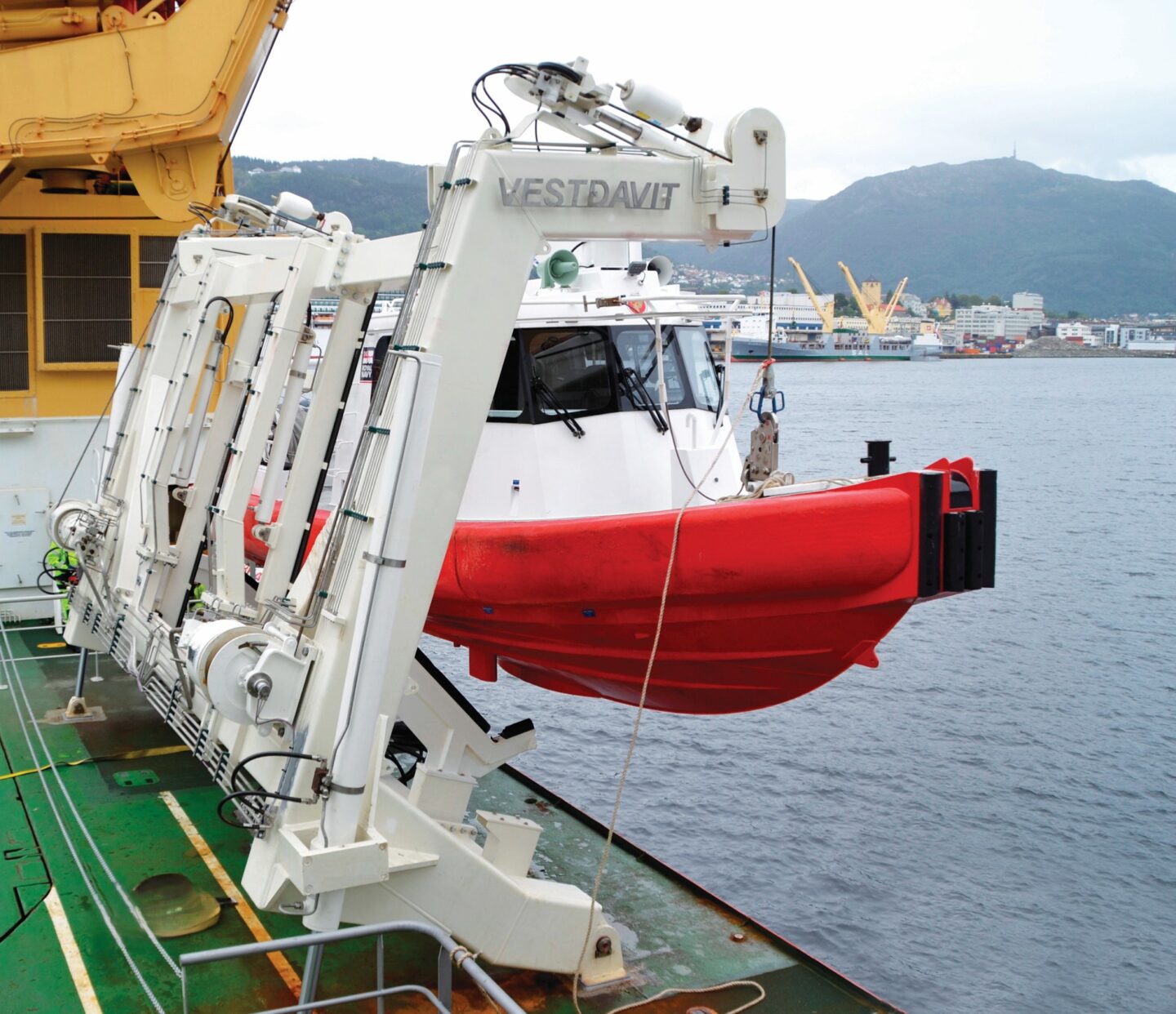

The Vestdavit HN series is a highly specialized navalized H-frame davit system engineered to meet the rigorous demands of naval and defense operations.
Designed for robust performance, the HN series features redundant equipment such as duplicated shock absorbers and constant tension winch systems on each fall line, ensuring superior reliability and safety even in rough sea states. This dual-fall setup enhances stability and control during boat handling operations, providing precise movement coordination critical for mission success. The structural H-frame design further contributes to operational robustness, allowing for the secure launch and recovery of heavy and sensitive payloads under demanding conditions. The HN series’ advanced functionality is its integration of a programmable logic controller (PLC), which governs synchronized fall movements and enables intelligent automation. This system supports automatic levelling of the boat or equipment during launch and recovery, reducing operator workload and minimizing the risk of human error.
Product Model
| Model | HN-5000 | HN-9003 | HN-9005 | HN-10000 |
|---|---|---|---|---|
| Med B Cert. | Yes | Yes | Yes | |
| MWL | 5000 | 9000 | 9000 | 10000 |
| Total travel (outreach) | 3479 | 4273 | 3540 | 5572 |
| Inst. Height, Stored Pos (mm) | 4053 | 5915 | 3993 | 5690 |
| Std. Max Hoist Speed (m/min) | 0-36 | 0-36 | 0-36 | 0-36 |
| Estimated Std Power Cons. (kW) | 60 | 120 | 120 | 136 |
| SOLAS | Yes | Optional | Optional | Optional |
| Opt Max Hoist Speed (m/min) | 0-50 | 0-50 | 0-50 | 0-50 |
* All data presented in this table are indicative and minor deviations may occur. Data may be subject to change based on final system configuration
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration
All data presented in this table are indicative and minor deviations may occur.
Data may be subject to change based on final system configuration

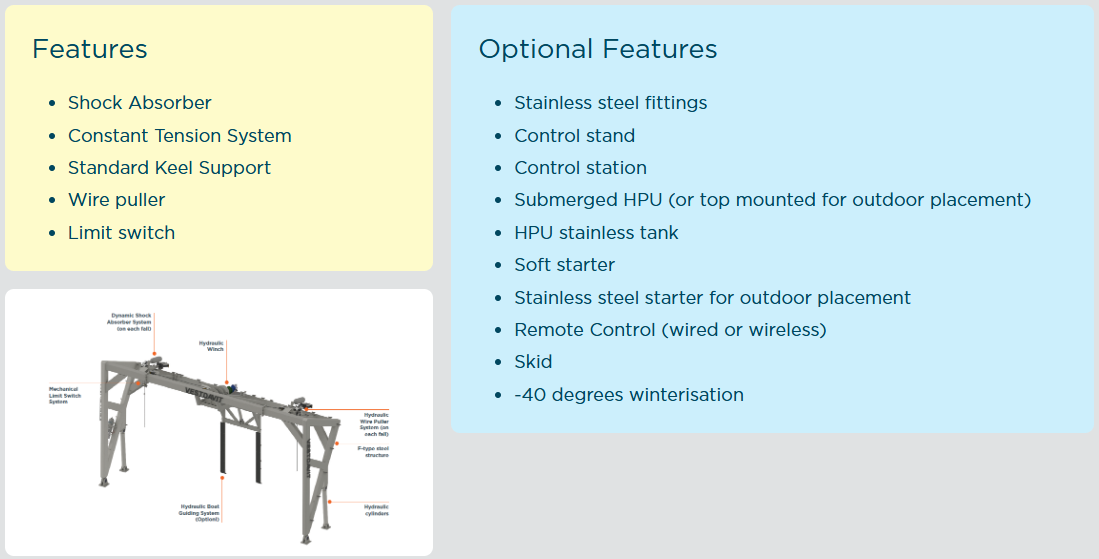

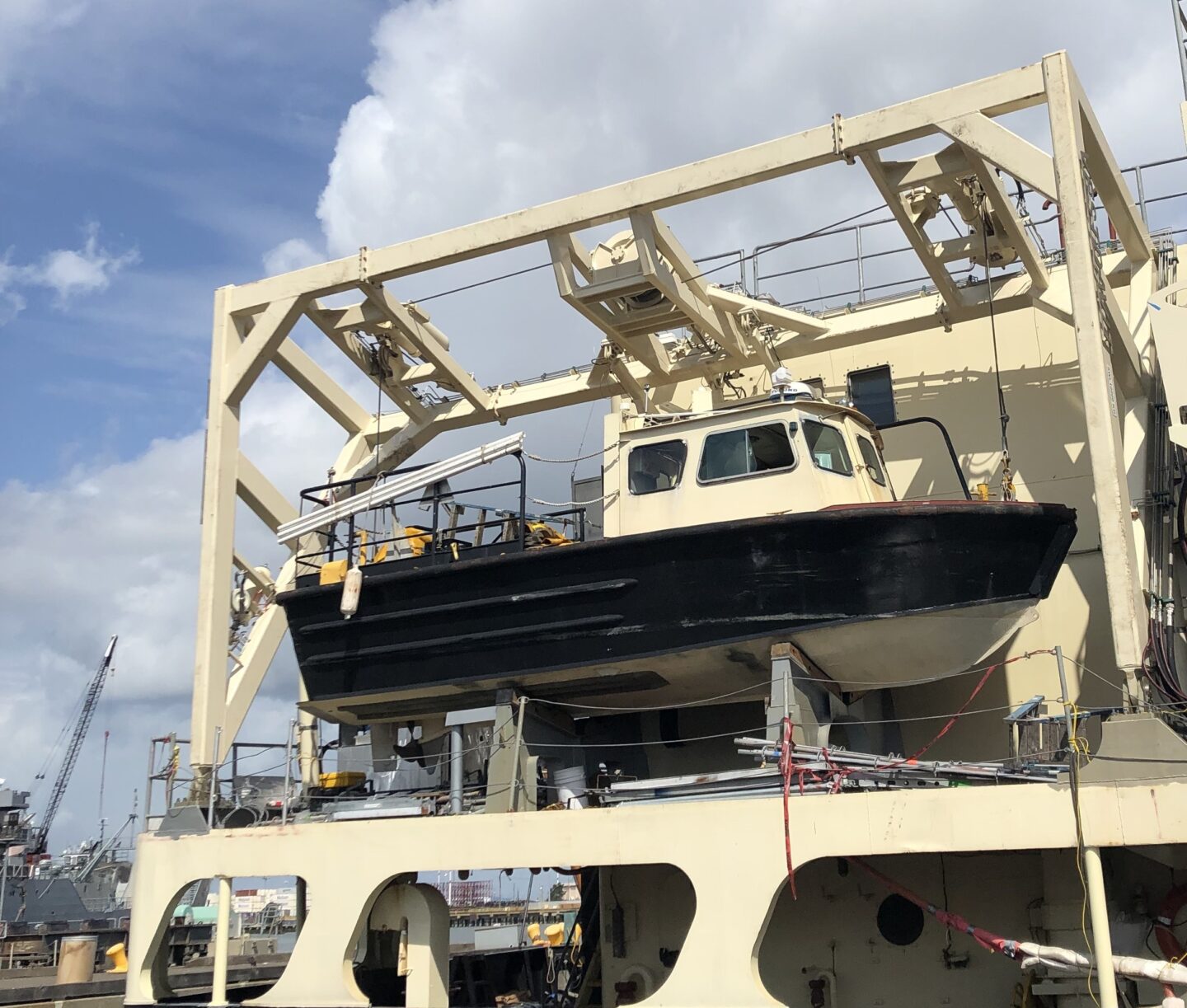

The Vestdavit F-Type is a state of the art hydraulically operated, dual point davit system specifically designed for the safe and efficient launch and recovery of large workboats or Unmanned Surface Vehicles (USVs) with cradle arrangements.
This system is engineered to meet the demanding operational needs of modern maritime environments, ensuring precision, reliability, and safety in both routine and emergency deployment scenarios. This design minimizes stress on the hull and structure of the boat, reducing wear and tear while enhancing the longevity of both the davit system and the vessels it supports. One of the key advantages of the F-Type system is its fully bespoke design, which allows it to be customized based on the Maximum Working Load (MWL) of the operator’s chosen payload. This adaptability ensures that the system seamlessly integrates with a variety of boat sizes, weights, and operational requirements, making it an ideal solution for navies, coast guards, offshore industries, and research vessels that require versatile and dependable launch and recovery capabilities. The F-Type davit is built in full compliance with the latest industry regulations and safety standards, including DNV-GL-498 dimensioning rules and safety coefficients.
Product Models
| Model | F-10000 |
|---|---|
| Med B Cert. | Yes |
| MWL | 10000 |
| Total travel (outreach) | 4522 |
| Inst. Height, Stored Pos (mm) | 5600 |
| Std. Max Hoist Speed (m/min) | 0-36 |
| Estimated Std Power Cons. (kW) | 120 |
| SOLAS | Yes |
| Opt Max Hoist Speed (m/min) | 0-50 |

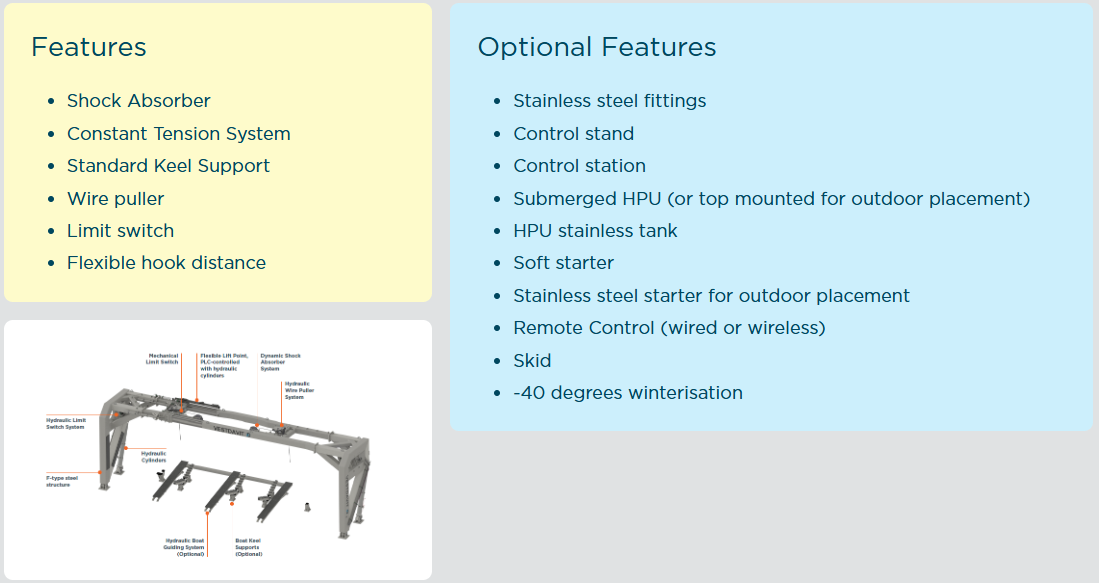

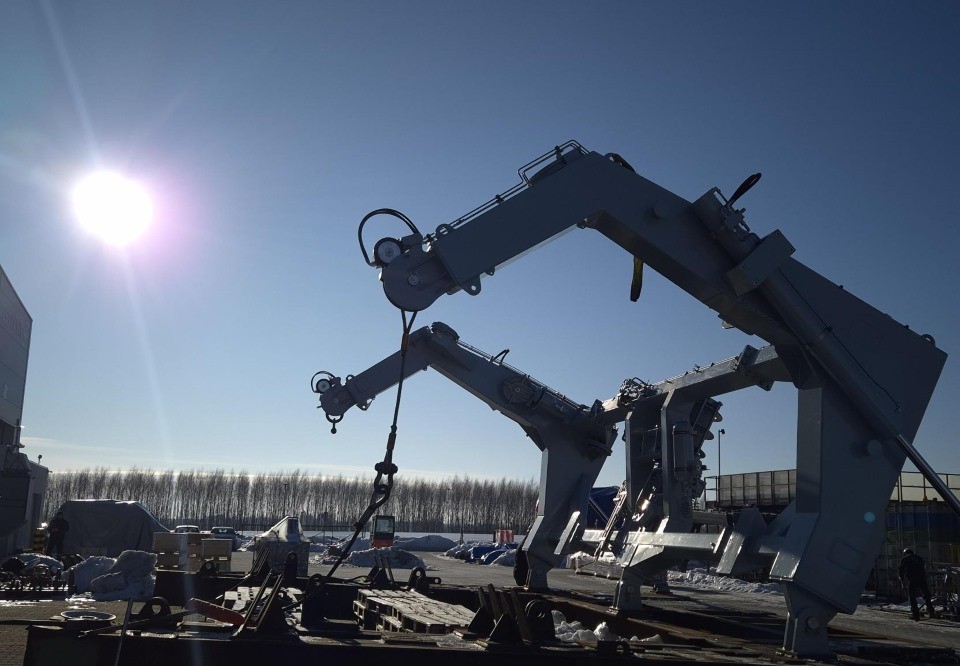

The Vestdavit FF davit series represents a significant evolution in davit technology, building on the trusted foundation of the original F davit while introducing enhanced versatility and adaptability.
At its core is an innovative flexible hook distance system that enables seamless reconfiguration of the davit’s lifting points. This feature allows operators to quickly adapt between single-point and dual-point configurations, depending on the size and type of craft being launched or recovered. Whether managing smaller, lightweight boats or larger, heavier vessels, the FF series ensures reliable, secure handling without the need for manual adjustments or equipment changes. This flexibility is powered by integrated hydraulic cylinders and governed by a programmable logic controller (PLC), enabling automated transitions between configurations. The system’s intelligence and automation not only simplify operations but also increase efficiency and safety, particularly in dynamic marine environments.
Product Models
| Model | FF-10000 | FF-15000 | FF-30000 |
|---|---|---|---|
| Med B Cert. | Yes | Yes | No |
| MWL | 10000 | 15000 | 30000 |
| Total travel (outreach) | 4980 | 4142 | 6662 |
| Inst. Height, Stored Pos (mm) | 5614 | 6726 | 5936 |
| Std. Max Hoist Speed (m/min) | 0-30 | 0-30 | 0-30 |
| Hoist Speed (m/min) | 110 | 162 | 328 |
| SOLAS | Optional | Optional | No |
| Opt Max Hoist Speed (m/min) | 0-50 | 0-50 | 0-40 |
* All data presented in these tables are indicative and minor deviations may occur. Data may be subject to change based on final system configuration

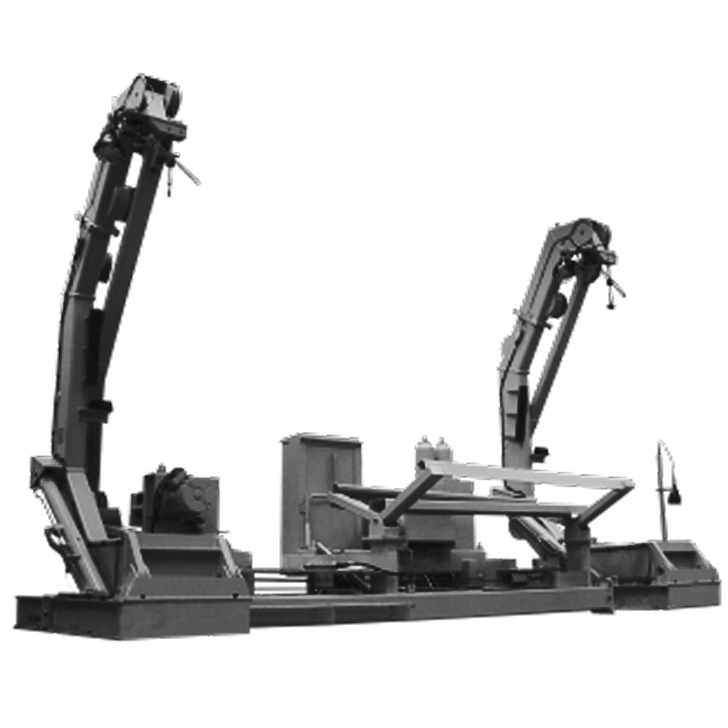

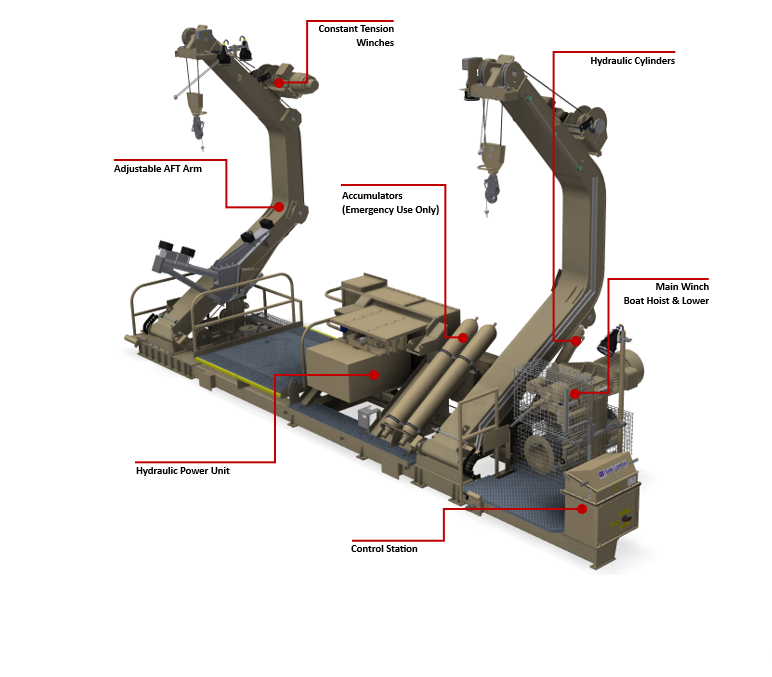

Welin Lambie’s TWPIV5.0B davit is designed to launch a workboat as per SOLAS regulations. The davit is of steel construction with the luffing cycle driven by a self-contained hydraulic power pack, whilst the hoist and lower are controlled by an electric winch. The davit, winch and all accessories are supplied fully assembled, including hydraulic pipping and electrical cabling. It is one of our bestselling davit with over 70 units sold.
TWPIV5.0B Davit Features:
- Variable Speed Electric Motor for Hoist and Lower
- Constant Tension Winch
- Variable Speed Luffing
- Emergency Luffing and Gravity Lower for Power Loss Situation
- Emergency Back Up Cranking System
- -30 Degrees Celsius Winterisation
- SOLAS Approved
- Boat Chocks
- Adjustable Hook Centers through AFT Arm Position
PIV3.6E Davit Specification:
| Approvals | NAVSEA, SOALS, NVR |
| Capacity | 5000 kg (11020 lbs) |
| Power | Electric 440 V : 3 ph : 60 Hz |
| Power Hoist & Lower | 0 – 26.2 m/min (0 – 86 ft/min) |
| Gravity Lower | 52 m/min (170 ft/min) |
| Constant Tension | 0 – 54 m/min (0 – 177 ft/min) |
| Boat Type | RIB (Not exceeding 9’-0” Wide x 29’-0” Long) |
| Envelope | Width 9110 mm, Depth 2788 mm, Height 4800 mm (Inboard) |
| Davit Weight (Dry) | 9300 kg |
| Total Travel (Outreach) | 2692 mm |
| Davit CRS Between | 5400mm & 6185mm (17’-8.75” & 20’-3.5”) |
H-13001 Davit
The H davit is a two-point lifting system designed for the launch and recovery of lifeboats and rescue boats.
This davit is widely used in naval vessels, commercial shipping, and offshore platforms, where lifeboats are essential for emergency evacuation and search-and-rescue operations. Its versatile and customizable design allows it to accommodate lifeboats of various sizes and configurations, while maintaining compliance with strict international safety and class certification standards.
This adaptability makes the H davit a reliable and efficient choice for maritime operators seeking a robust, long-term solution for lifeboat handling. The H davit utilizes two lifting points with a balanced weight distribution, as this helps to evenly distribute the boat’s weight, preventing excessive tilting and ensuring a controlled launch which Increases safety, smooth deployment and recovery.
One of the outstanding features of the H davit is its ability to accommodate a wide range of lifeboat sizes and designs which can be configured to launch both standard lifeboats and fast rescue boats (FRBs). These davits can be manual, hydraulic, or electrically operated.

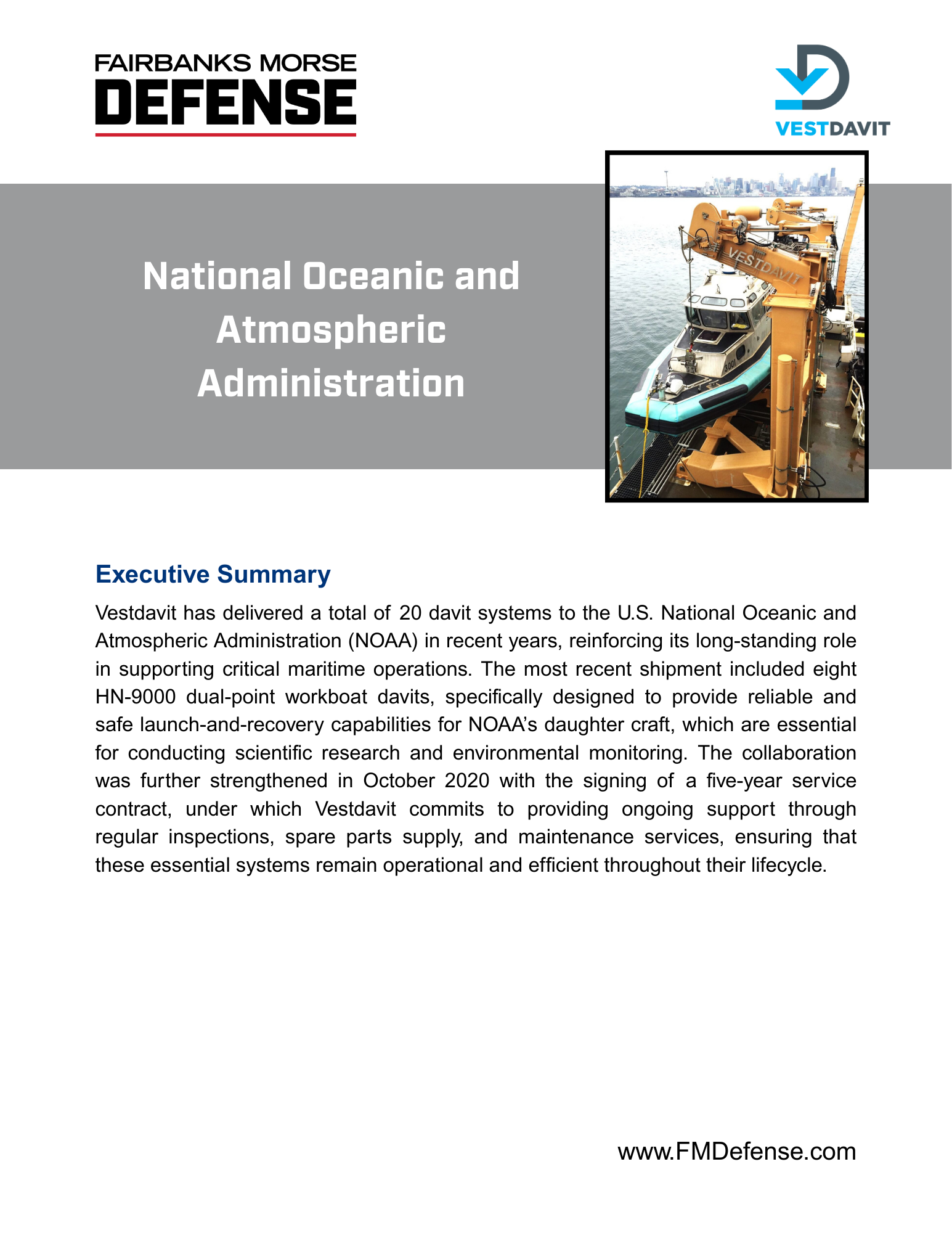

References
